• DVD/CD receiver

• 6.8" VGA touchscreen

• Bluetooth hands-free calling and audio streaming

• HD Radio tuner

• customizable touchscreen interface

• 5 display colors, 112 key color options

Smartphone Features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay compatible (requires wired connection)

• Android Auto compatible (requires wired connection)

• WebLink for access and display of YouTube and other iPhone apps

• built-in iPod, iPhone, and iPad control

• playback and control of music files on compatible Android devices

• Siri Hands Free and Google VR with compatible phones

• Pandora and Spotify control with iPhone and Android

Audio/video Features:

• plays audio/video content from CDs, DVDs, and USB memory devices (see Details tab for full capabilities)

• plays lossless FLAC audio files (up to 192kHz/24-bit) from flash media

• 13-band graphic equalizer with 7 preset EQ curves

• high- and low-pass filters

• Advanced Sound Retriever

• Auto-EQ equalizes for your car interior automatically (optional mic required)

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

• inputs: rear USB port, rear audio/video input (minijack), dual camera inputs

• outputs: video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

• built-in amp (14 watts RMS CTA-2006/50 peak x 4 channels)

• CTA-2006 compliant

• compatible with most factory steering wheel audio controls (adapter required)

• fits double-DIN dash openings

• remote control

• compatible with iDatalink Maestro module

  • retains factory features for a variety of vehicles

• displays engine performance data and other info on touchscreen

Power & Output:

• RMS Power (CTA-2006): 14 watts

• RMS Power (Manufacturer): 22 watts

• Peak Output: 50 watts

Expandability:

• AUX Input: Mini (rear), RCA (rear)

• Audio/video Input: Mini (rear), RCA (rear)

• USB Input: Rear

• USB Port Power: 1.5A

• Backup Camera Input: Yes

• Second Camera Input: Yes

• Preamp Outputs: 6-channel

• Sub Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: USB memory

Smartphone Control:

• iPhone Compatibility: iPhone 11ProMax, 11Pro, 11, XSMax, XS, XR, X, 8+, 8, 7+, 7, 6S+, 6S, 6+, 6, 5S, 5C, 5, SE, 4

• CarPlay: Wired only

• Siri Control: Yes

• Android Control: Yes

• Android Auto: Wired only

• Alexa Voice Control: Yes

Tuner:

• FM Sensitivity: 12 dBf

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback:

• Music File Playback: MP3, WMA, AAC, FLAC, WAV

• High-res Playback: FLAC (192kHz)

Navigation Control:

• Navigation: Optional

• Navigation App Compatible (iOS): Apple, Google, Waze

• Navigation App Compatible (Android): Google, Waze

Features & Specs:

• Bluetooth Compatible: Built-in

• Bluetooth Version: 4.1

• Satellite Radio Ready: SiriusXM 3.0

• HD Radio: Built-in

• Video Screen: Yes

• Preamp Voltage: 4

• Screen Size: 6.8"

• Screen Type: Basic (Resistive)

• Display Color: ---

• Key Button Color: Variable

• EQ Bands: 13

• Wireless Remote: Yes

• Steering Wheel Control Compatible: Adapter required

Dimensions:

• Chassis Depth: 6.845"

• Chassis Width: 7.025"

• Chassis Height: 3.945"

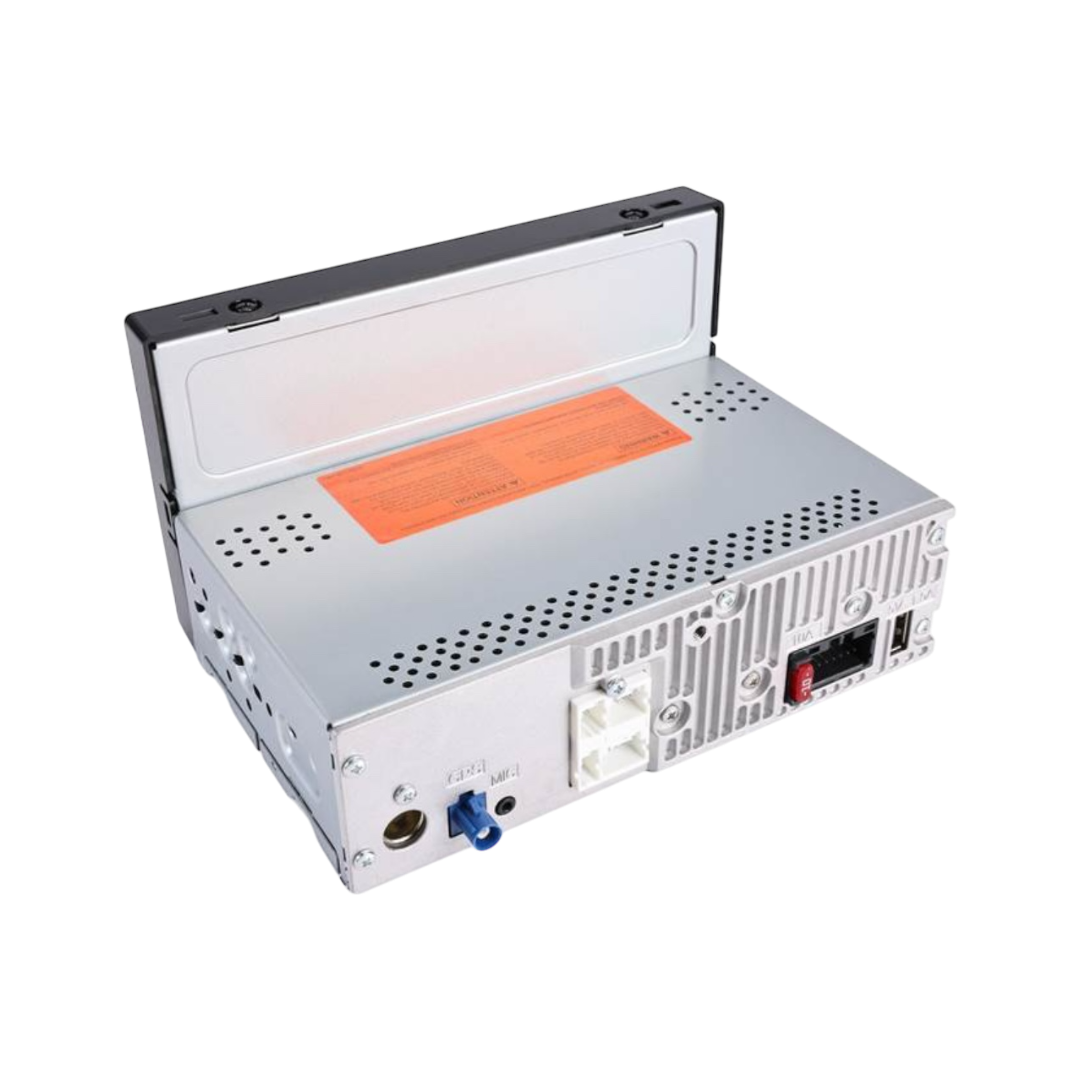

• DVD receiver w/ integrated 6.8" touchscreen monitor (10A fuse inserted in chassis)

• Wiring harness

• Remote control (CXE5116)

• CR2025 3V lithium battery (installed in remote)

• 58" USB extension cable

• Microphone w/ visor-bracket (attached 13' cable terminated by a right-angled 2.5mm connector)

• Two-sided tape

• 6 Pan-head ISO screws (M5 x 6mm)

• 6 Counter-sunk ISO screws (M5 x 6mm)

• Installation Manual

• Quick Start Guide

• Warranty Sheet
