• DVD receiver

• 6.2" resistive touchscreen display

• built-in Bluetooth for hands-free calling and audio streaming

• fits double-DIN dash openings

• remote control

Smartphone Features (see Details for info on compatibility):

• works with WebLink for access to select apps through the receiver's display

• Amazon Alexa voice control (Pioneer Vozsis smartphone app required)

• built-in iPhone control via USB

• built-in Android music control via USB

Audio/video Features:

• plays audio/video content from CDs, DVDs, and USB memory devices (see Details tab for full capabilities)

• plays MP3, WMA, AAC, FLAC, and WAV music files

• plays high-resolution FLAC audio files up to 192kHz/24-bit

• 13-band graphic equalizer with 7 preset EQ curves

Expandability:

• inputs: front USB input, rear A/V input, rear-view camera input

• outputs: video output, 5-channel preamp outputs (2-volt front, rear, and mono subwoofer)

Other Information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

• internal amp (14 watts RMS CTA-2006/50 peak x 4 channels)

• compatible with most factory steering wheel audio controls (adapter required)

Power & Output:

• RMS Power (CTA-2006): 14 watts

• RMS Power (Manufacturer): 22 watts

• Peak Output: 50 watts

Expandability:

• AUX Input: Mini (rear)

• Audio/Video Input: Mini (rear)

• USB Input: Front

• USB Port Power: 1.5A

• Backup Camera Input: Yes

• Second Camera Input: No

• Preamp Outputs: 5-channel

• Sub Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: USB memory

Smartphone Control:

• iPhone Compatibility: 6 and newer

• CarPlay: No

• Siri Control: No

• Android Control: Yes

• Android Auto: No

• Alexa Voice Control: Yes

Tuner:

• FM Sensitivity: 12 dBf

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback:

• Music File Playback: MP3, WMA, AAC, FLAC, WAV

• High-res Playback: FLAC (192kHz)

Navigation Control:

• Navigation: No

• Navigation App Compatible (iOS): No

• Navigation App Compatible (Android): N/A

Features & Specs:

• Bluetooth Compatible: Built-in

• Bluetooth Version: 4.2

• Satellite Radio Ready: No

• HD Radio: No

• Video Screen: Yes

• Preamp Voltage: 2

• Screen Size: 6.2 inches

• Screen Type: Basic (Resistive)

• Display Color: N/A

• Key Button Color: Blue

• EQ Bands: 13

• Wireless Remote: Yes

• Steering Wheel Control Compatible: Adapter required

Dimensions:

• Chassis Depth: 6.765 inches

• Chassis Width: 7.025 inches

• Chassis Height: 3.955 inches

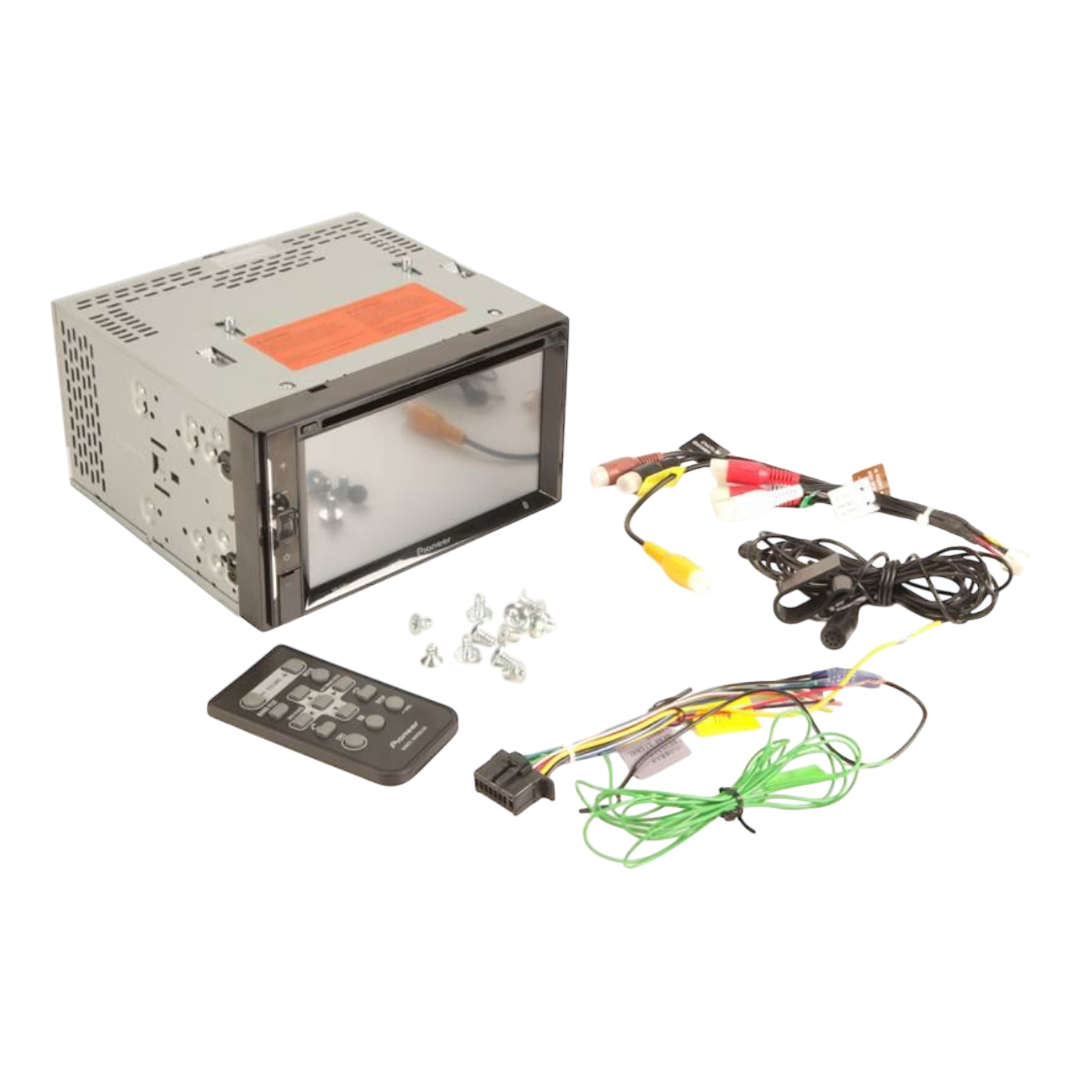

• DVD receiver (10A fuse)

• Wiring harness (6.5' Parking brake wire)

• Preout/AV harness

• Remote control (CXE9605)

• CR2025 3V lithium battery (installed in remote)

• Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)

• Two-sided tape

• 6 Pan-head ISO screws (M5 x 9mm)

• 6 Counter-sunk ISO screws (M5 x 9mm)

• Installation Manual

• Quick Start Guide

• Warranty Sheet

• "CAUTION" note
