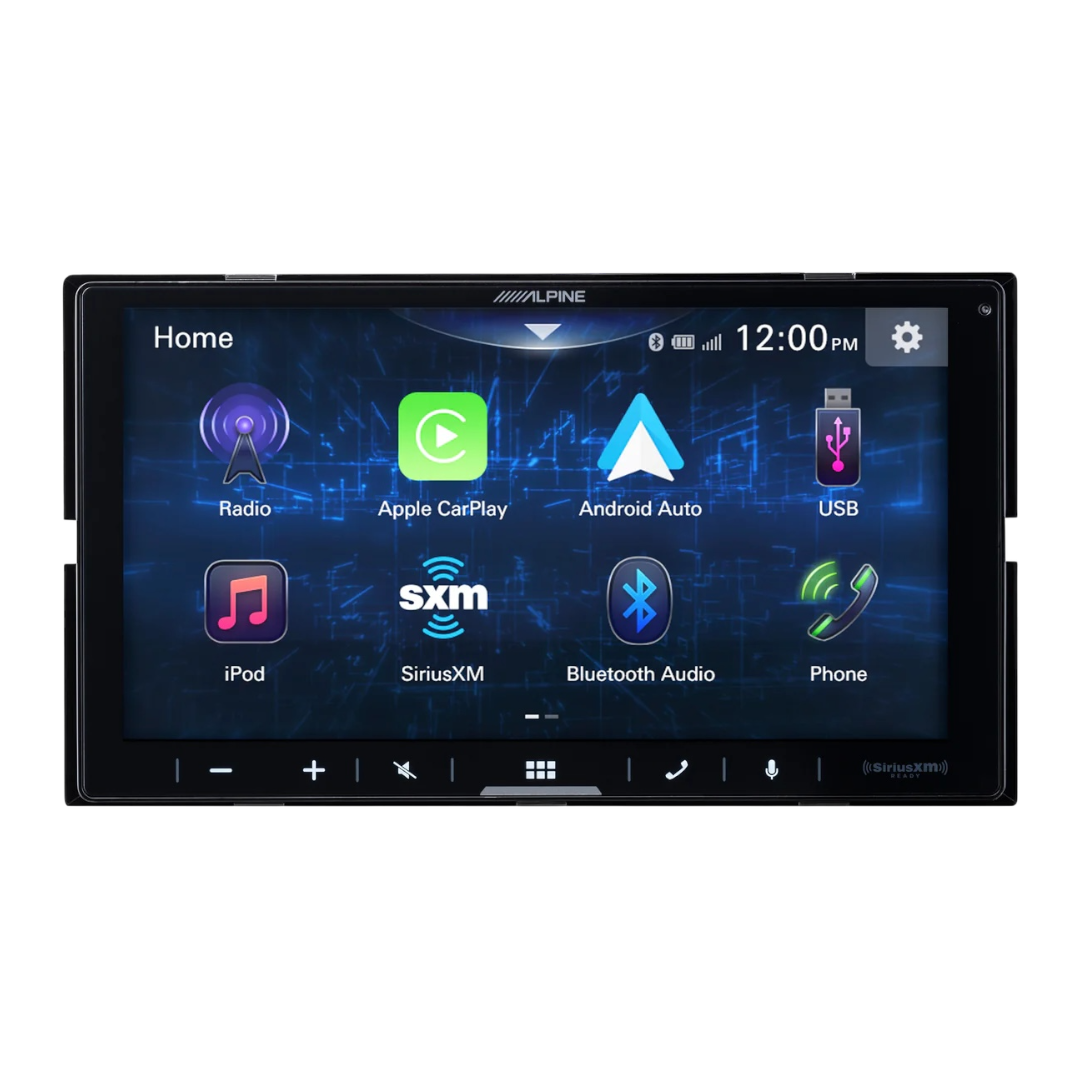

General features:

• digital media receiver with AM/FM tuner (does not play discs)

• 6.75" capacitive touchscreen

• designed for use with Alpine's KTA-450 or KTA-200M power pack amplifiers

• fits in double-DIN (4" tall) dash openings

• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay compatible (requires wired connection)

• Android Auto compatible (requires wired connection)

• built-in iPhone control

• Siri Eyes Free and Google Assistant control

• playback and control of music files on compatible Android devices

Audio/video features:

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details tab for full capabilities)

• plays AVI, MPEG 1/2, MPEG-4, and WMV video files (see Details tab for full capabilities)

• 13-band graphic equalizer

• 6-channel time correction

• front, rear, and subwoofer crossovers

• Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)

• Lighting Link Control (compatible with Alpine PrismaLink subwoofers)

Expandability:

• works with SiriusXM SXV300 tuner (not included)

• inputs: rear USB port, rear 3.5mm audio/video auxiliary input, camera input

• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other features and specs:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)

• compatible with most factory steering wheel audio controls (adapter required)

• built-in amplifier (16 watts RMS/50 peak x 4 channels)

• CTA-2006 compliant

General:

• RMS Power (CTA-2006): 16 watts

• RMS Power (Manufacturer): 16 watts

• Peak Output: 50 watts

Expandability:

• AUX Input: Mini (rear)

• Audio/video Input: Mini (rear)

• USB Input: Rear

• USB Port Power: 1.5A

• Backup Camera Input: Yes

• Second Camera Input: No

• Preamp Outputs: 6-channel

• Sub Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: USB memory

Smartphone Control:

• iPhone Compatibility: 6 and newer

• CarPlay: Wired only

• Siri Control: CarPlay only

• Android Control: Yes

• Android Auto: Wired only

• Alexa Voice Control: No

Tuner:

• FM Sensitivity: ---

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System: No

File Playback:

• Music File Playback: MP3, WMA, AAC, FLAC, WAV

• High-res Playback: No

Navigation Control:

• Navigation: CarPlay, Android Auto

• Navigation App Compatible (iOS): Apple, Google, Waze

• Navigation App Compatible (Android): Google, Waze

Features & Specs:

• Bluetooth Compatible: Built-in

• Bluetooth Version: 5.0

• Satellite Radio Ready: SiriusXM

• HD Radio: No

• Video Screen: Yes

• Preamp Voltage: 4

• Screen Size: 6.75 inches

• Screen Type: Swipeable (Capacitive)

• Display Color: ---

• Key Button Color: Variable

• EQ Bands: 13

• Wireless Remote: No

• Steering Wheel Control Compatible: Adapter required

Dimensions:

• Chassis Depth: 3.195 inches

• Chassis Width: 7.015 inches

• Chassis Height: 3.945 inches

Digital media receiver

Wiring harness (15A fuse)

Preout/Camera harness

42" USB extension cable

GPS antenna (attached 12' cable terminated by a Fakra connector)

Self-adhesive mount for GPS antenna

Microphone with bracket (attached 13' cable terminated by a male 2.5mm mono connector)

4 Pan-head ISO screws

4 Counter-sunk ISO screws

Quick Reference Guide

Registration Card
